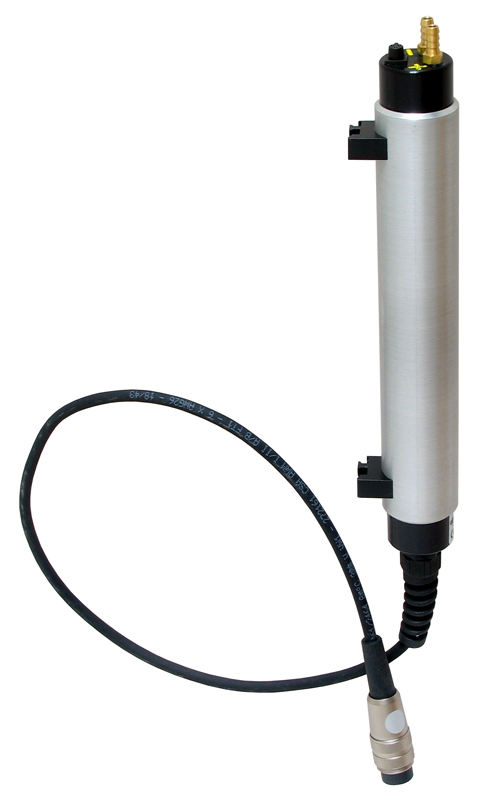

SWA 10 is an air differential pressure probe that is used on Swema 3000 instead of the inbuilt or sensor in Swema 3000md or mdH+.
Read moreSWA 10 is an air differential pressure probe that is used on Swema 3000 instead of the inbuilt or sensor in Swema 3000md or mdH+.
Swema 3000 can calculate air velocity and air flow. SWA 10 is also used with a leakage tester together with Swema 3000md or 3000mdH+ and
SWA 10 has an inbuilt valve that zero checks the pressure. SWA 10 has two holders attached so it can be fitted on any Swema 3000.
| Miscellaneous | |
|---|---|
| Pressure range -300…1500Pa | |
| Max. overload ±20 000 Pa | |
| Accuracy | ±1% read value, minimum 0,3Pa |
| 95% coverage probability in non condensing, non moist air, <80%RH, non aggressive gases | |
| Position dependance | 0,6 Pa, None with measuring method SAFE |
| Temperature dependence | 0,2Pa/°C |
| Outputs 1 mV / Pa, 100mV / m/s | |
| Probe Calibration Recommended every 12 months. | |
| Order nr. SWA 10 with traceable calibration certificate (761.430) | |
| Tested according to EN 50081-1 and EN 50082-1. | |
| Temperature operating range | 0...+50°C |
| order nr. 761.430 |
